5TH AND WALNUT GARAGE
Columbia, MO
PROJECT DETAILS
- Design Criteria:
- Provide storage with approximately 13,000 SF of mixed use space at the grade level
- Designed for a 50+ year service life
- Utilized low energy LED fittings throughout the interior of the facility.
- Owner: City of Columbia, Missouri
- Engineer: Walker Parking Consultant
- Architect: Peckham & Wright Architects
- Builder(s): Graham Construction, Inc. Omaha, Nebraska
- General Contractor: Thermal-Shell Homes LLC
- Epoxy-Coated Reinforcing Steel: 560,000 pounds
- Total Project Cost: $14 million
- Year Completed: Spring, 2011

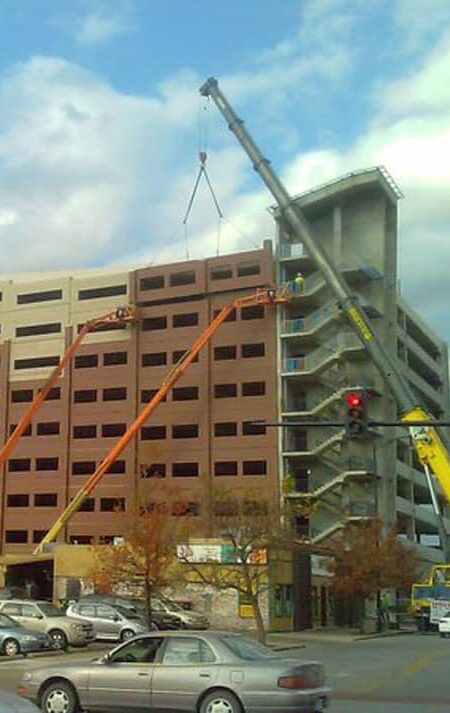

A new parking garage was built in the City of Columbia, Missouri that would complement the surrounding downtown Columbia architecture. The building was constructed using cast-in-place, unbonded post-tensioned structural system and included precast façade panels. These panels used a thin-set brick to the concrete. Details include stacked precast panels to provide the aesthetic appeal of a typical building, masking the ramped parking structure floors beyond.
The 703-space garage has 10 levels, and was constructed by Graham Construction, Inc. Omaha, Nebraska. It was designed with a 50+ year design life and the construction included use of epoxy-coated reinforcing steel in the top layer of the slab to resist corrosion. In addition, a traffic topping membrane was placed over the mixed-use space to prevent water migration through the slab into the occupied space.
